0004GPX-4500

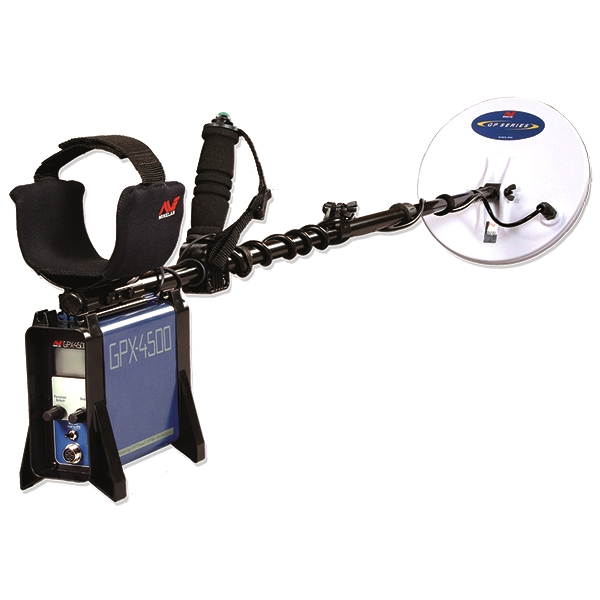

The versatile GPX-4500 is a proven gold finder with many features and great performance. Incorporating Minelab’s superior Multi Period Sensing (MPS), Dual Voltage Technology (DVT) and Smart Electronic Timing Alignment (SETA) technologies it penetrates mineralised ground better and deeper than basic PI detectors.
Features
- MPS, DVT & SETA technologies for superior gold detecting performance.

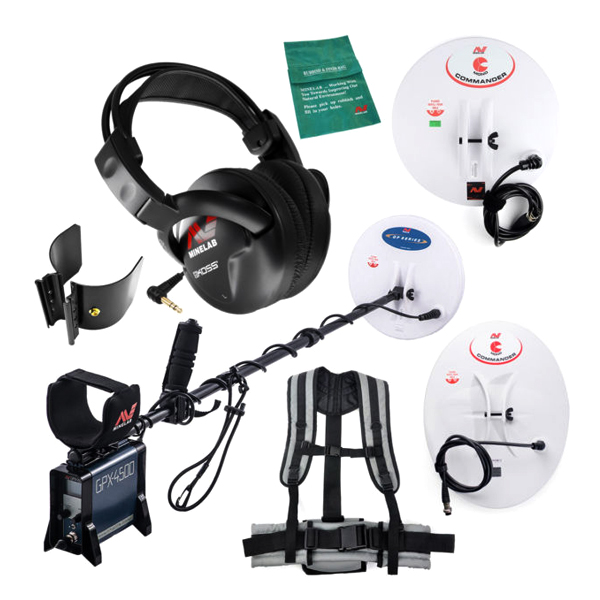

- 2 coils supplied: 11-inch Double-D for general use AND 11" Monoloop for deeper detecting
- Versatile Timing settings for various ground conditions. The Enhance timing is a powerful feature, similar to the Sensitive Smooth timing, but provides an improvement in the depth and signal response on small and large targets alike. The Sharp timing is more suited to quieter soils and can also help to pinpoint faint targets.
- Six pre-programmed search modes for easy switch-on-and-go detecting. All six search modes can be modified with your favourite settings and renamed.
- Stabilizer control for the smoothest threshold. In noisy conditions, turning it down will provide you with a smoother threshold. In quiet conditions, increase the stabilizer and faint target signals will be more obvious.
- Ground Balance OFF for neutral soils. This is a useful feature for very benign low mineralised or salt saturated soils. This setting will also work well for treasure or relic hunters in loam or sandy soils.
- Backlight with adjustable time-out to preserve battery life.
- Target Volume allows you to increase the strength of softer target signals. This is useful in windy conditions, for people suffering from hearing loss, and to adjust the audio volume when using external speakers. This can also provide an audio boost in mild soils, and can be used to smooth out ground noise signals in highly mineralised soils.
- The Iron Reject function allows you to set the desired level of discrimination, from cautious to aggressive. This enables detecting in areas with high levels of ferrous junk.
- Built-in amplifier so you can hear soft target signals from deeper nuggets, more easily. The Li-lon battery pack includes a built-in audio amplifier, allowing you to use an external speaker without the need for any external booster.
Application
Gold Prospecting & Deep Relic
Technology
MPS, DVT & SETA
Frequency/Transmission
Bi-Level, Advanced Pulse Induction
Coil (standard)
11" Double-D AND 11" Monoloop
Audio Output
6.35mm (1/4") headphone/speaker jack.
Headphones Supplied
Koss 100 ohm headphones.
Visual Display
LCD screen 64x128 pixels, transflective.
Backlight
Yes with adjustable automatic `time-out`.
Memory
Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up.
Detect Modes
General, Deep & Custom. Custom Modes are: Hi Mineral, Hi Trash, Patch & Test A.
Discrimination
Iron Reject: range 1 to 10 & All Metal.
Timings
Enhance, Normal, Sensitive Smooth, Salt Course, Sensitive Extra & Sharp.
Audio tone
Variable Control 1 to 100.
Audio Type
Quiet, Normal, Deep & Boost.
Ground Balance
Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast.
Ground Balance Type
General, Specific & Ground Balance Off.
Pinpoint
Quick-Trak button.
Sensitivity Adjust
Rx Gain 1 to 15.
Tune / Noise Cancel
Automatic & Manual 0 to 255.
Threshold
Adjustable turn control.
Target Volume Adjust
Volume Limit 1 to 20.
Battery
Lithium-Ion with built-in amplifier (up to 12 hrs). Supplied with mains and vehicle charger.
Low battery alert
Audio alert.
Length
1100mm - 1300mm (43.3" - 51.2").
Weight
2.4kg (5.3lbs) (ex. battery).
Warranty
3 years control box & coil.
